상세 정보 |
|||
| 분무기 종류: | 무인항공기(Uav) | 총 중량: | 28kg |
|---|---|---|---|
| 전원 공급 장치 입력 전압: | AC 100-220V 50-60Hz | 운동의 한계: | X축 ±25°, Y축 ±25°, Z축 150mm |
| 모션 방향 잠금: | 3축 잠금 가능 | 운송 패키지: | 박스 패키지 |
| 등록 상표: | TTA | 기원: | 중국 |
| 생산능력: | 10000단위/년 | ||
| 강조하다: | online flight simulator training,progressive drone training modules,UAV simulator platform education |
||
제품 설명

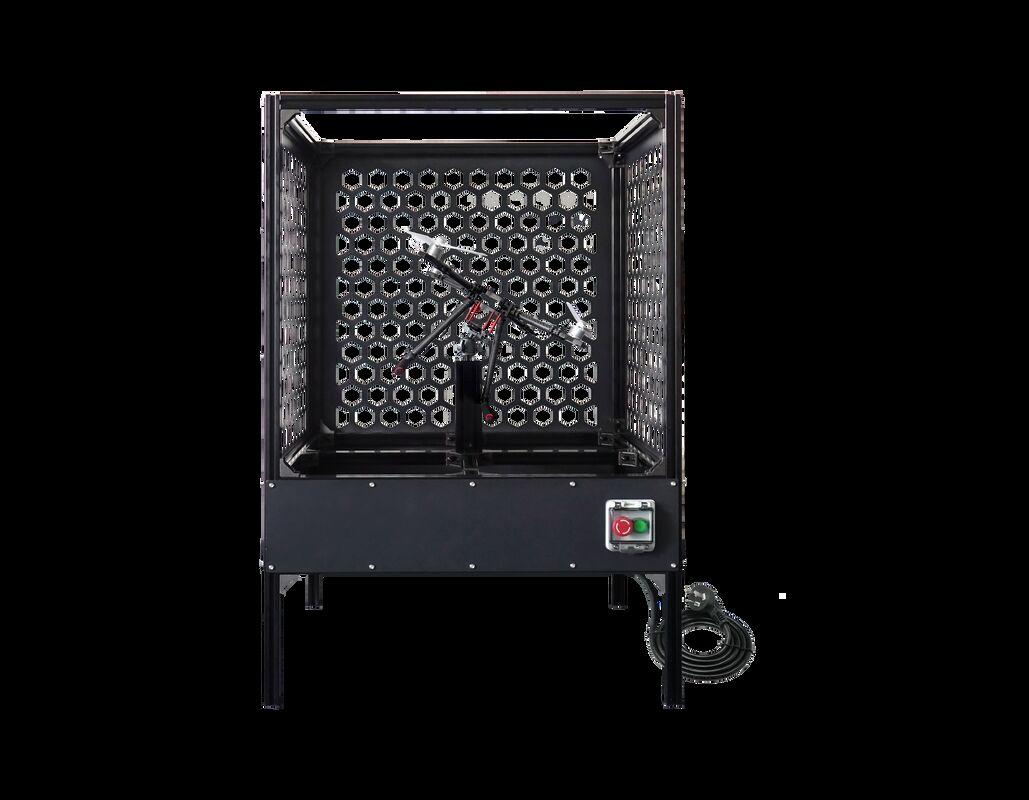

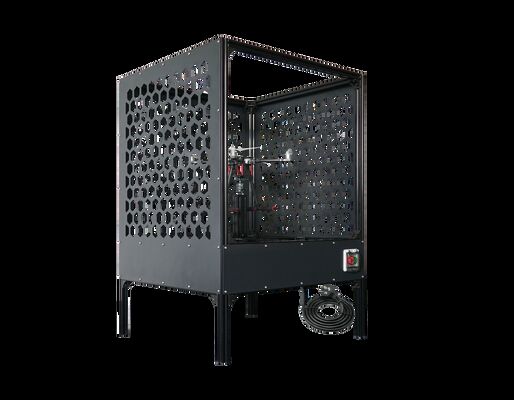

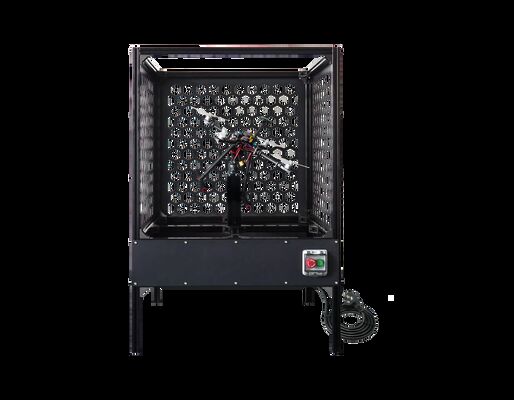

This system enables comprehensive PID debugging and flight testing for small drones. Whether you're a drone manufacturer, research institution, testing facility, or training center, the TE55 multi-degree-of-freedom drone debugging platform delivers professional and secure testing solutions.
Supply Ability: 500 sets per month
Packaging: Packed in professional aviation case
Port: Tianjin, Shanghai, Ningbo, Shenzhen
| Specification | Details |
|---|---|
| Outline dimension | 800*800*1200 mm |
| Total weight | 28Kg |
| Power supply input voltage | AC 100-220V 50-60Hz |
| Limit of motion | X-axis ±25°, Y-axis ±25°, Z-axis 150mm |
| Motion direction lock | Three-axis lockable |
| Supported device sizes | Wheelbase ≤550mm, propeller ≤12 inches, maximum height from fixed position to aircraft's highest point ≤200mm |
Accuracy: Horizontal: ±1cm + 1ppm, Vertical: ±2cm + 1ppm
Function: Ensures complete field coverage, prevents damage to neighboring crops and pollution, one base station supports multiple drones working simultaneously
- Double water pumps generate bigger pressure, max 4L/min adjustable flow rate
- Larger inlet for faster chemical filling with no leaking
- Advanced flow meter ensures precise spraying within 2% error margin
Equipped with front and back obstacle avoidance sensors, enabling automatic obstacle detection to prevent unexpected crashes and losses. The GCS displays the distance from obstacles in real-time.
Enables drone operation on undulating crop fields, making spraying work significantly easier.
Real-time video monitoring provides detailed information about drone status and crop conditions. Dual LED lights support night flight operations.
Comprehensive management solution for drones and spraying records. Supports real-time monitoring of all drone operations and collects data including sprayed area, spraying location, spraying logs, and more.
